Bonde de sol pour douche à l'italienne Valentin

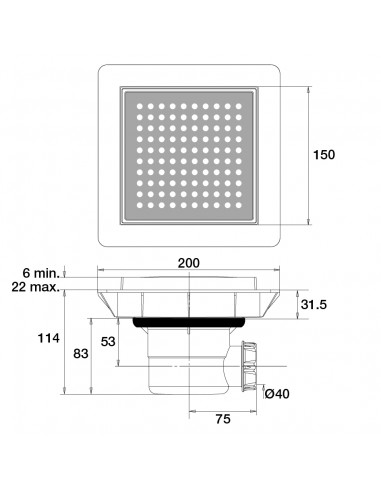

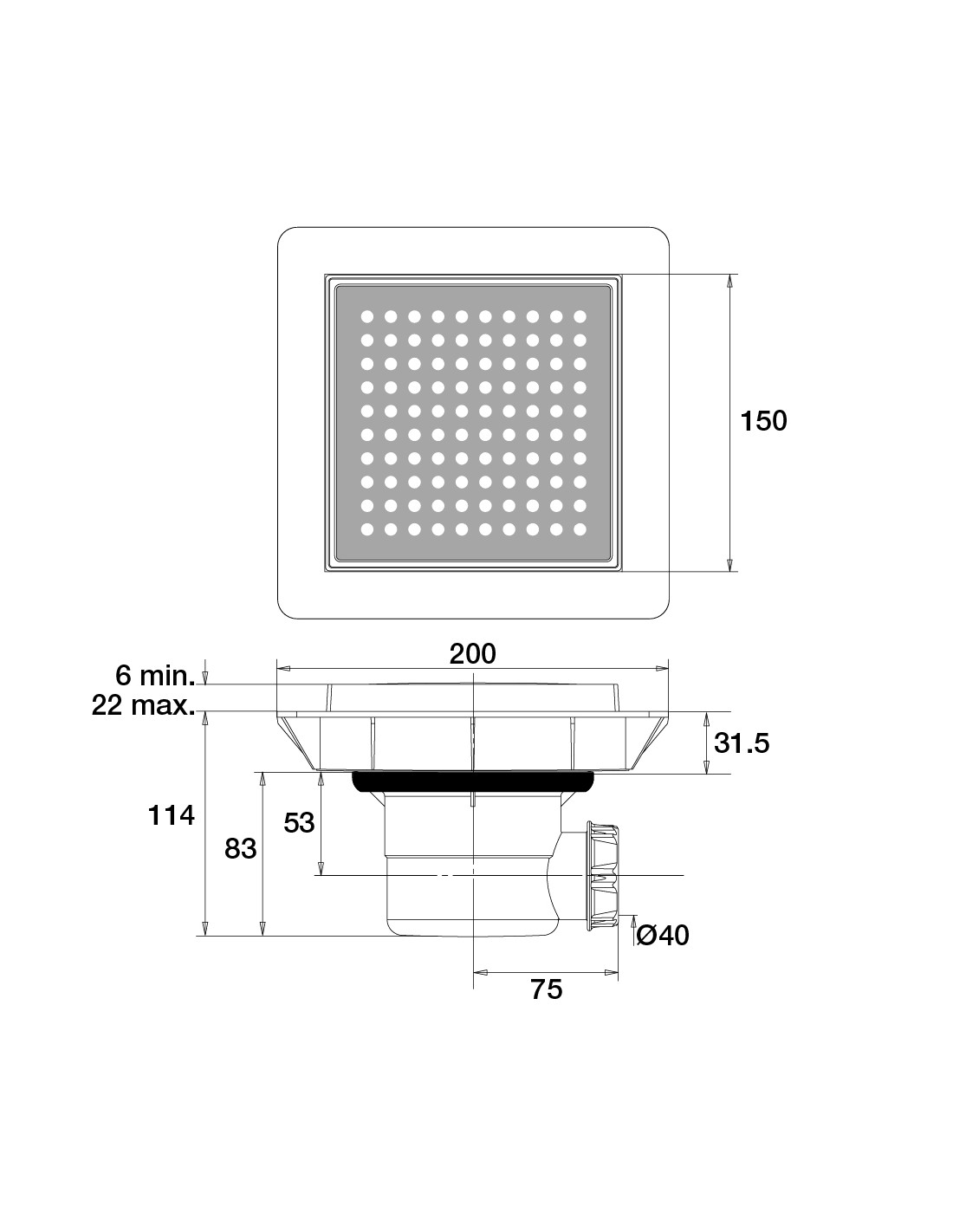

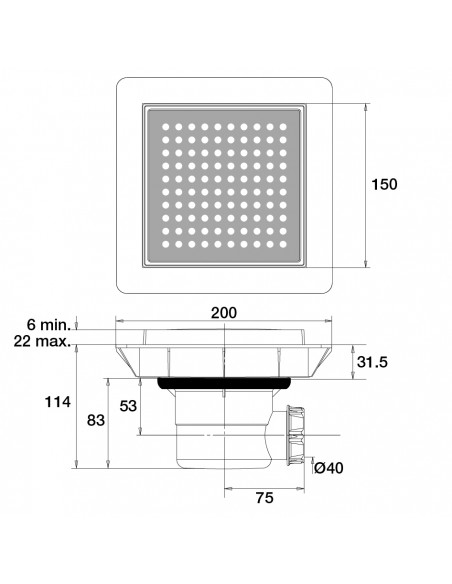

Drawing 460810 Quadratto shower gully for walk-in shower

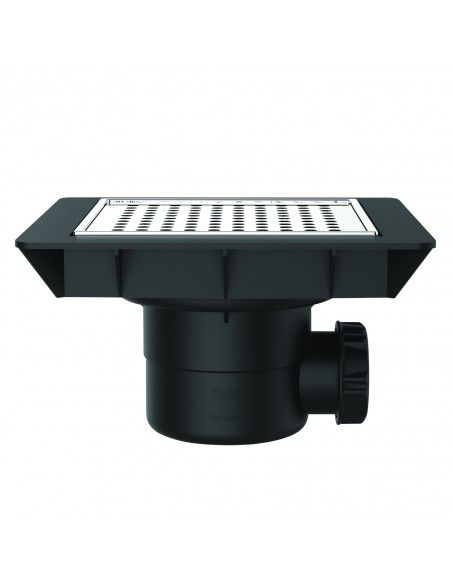

Bonde de sol réglable avec grille en inox et sortie horizontale de marque QUADRATTO

Quadratto shower gully for walk-in shower, adjustable tileable frame, chromed metal design grid

Brand: VALENTIN

Reference 460810 000 00

Quadratto shower gully with frame adjustable in height from 6 to 22 mm
Design grid in chrome plated metal, horizontal outlet diameter 40 mm to be screwed or solvent welded

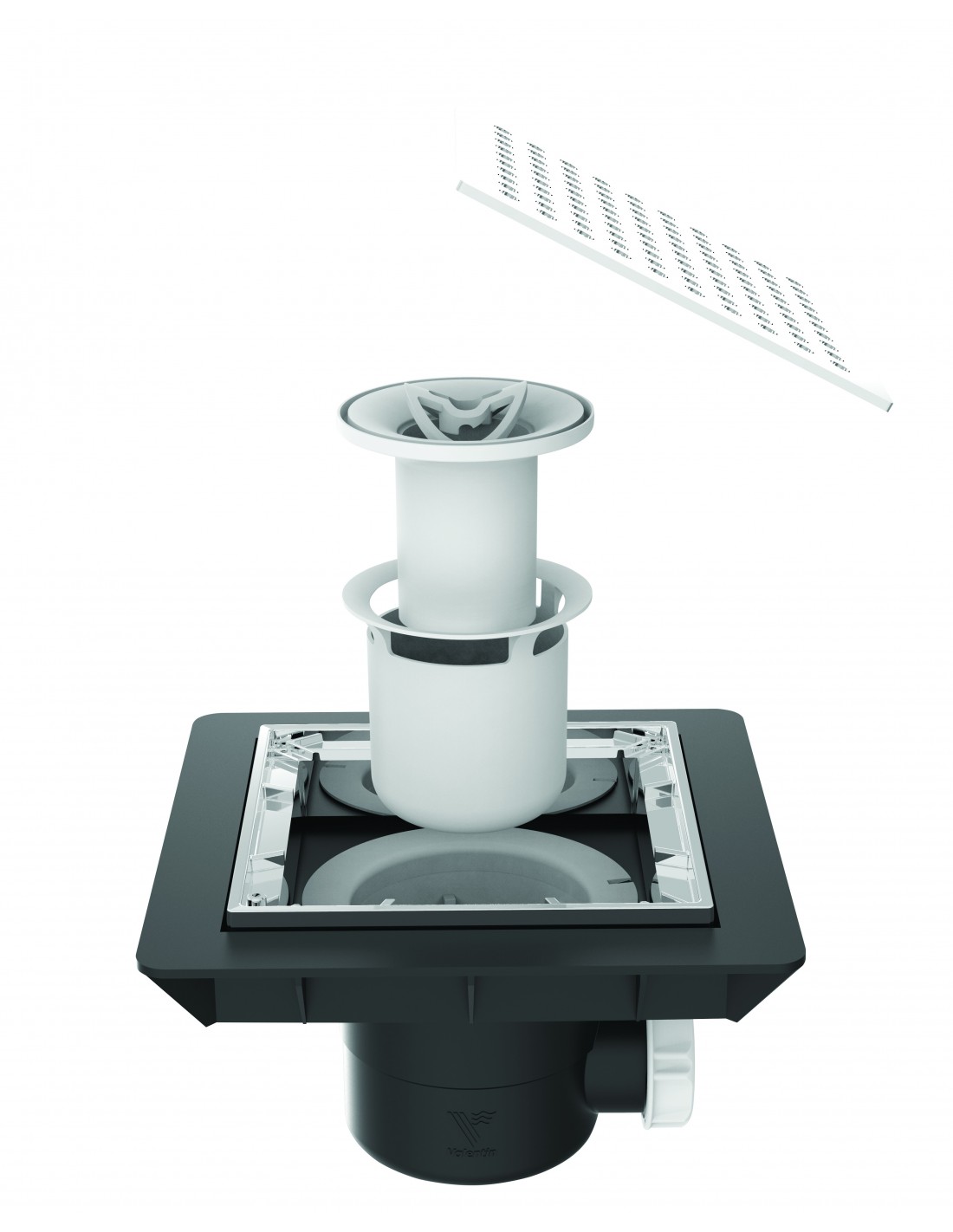

Easy maintenance thanks to the removable bucket and direct access to the pipe. Supplied with Butyl sealing strip.

Advantages

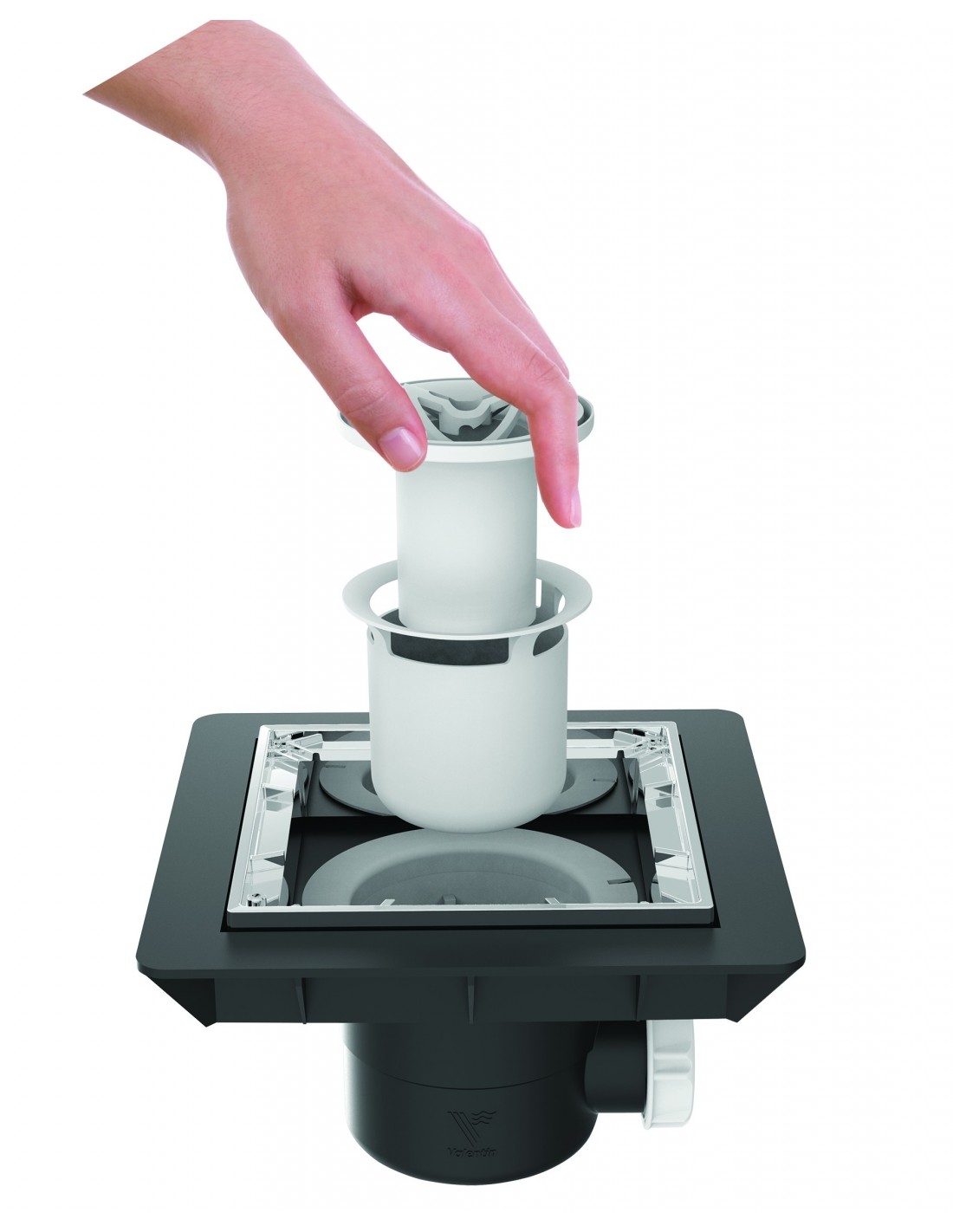

Cleaning without tools nor chemicals. Access to water pipe.
Compatible for person with reduced mobility
Easy and quick installation
Certified clean and sustainable solution by Solar Impulse Foundation

This Quadratto floor drain for walk-in shower has a height adjustable frame from 6 to 22 mm adjustable to the thickness of the tiles. The base is to be sealed in the screed, not exceeding 90 mm. The flow rate is 33 l / min to let the water flow smoothly and the hydraulic performance is easy to maintain. The waste is equipped with a cup removable without tools for easy cleaning and direct access to the main pipe. The horizontal outlet has a diameter of 40 mm.

The stainless steel design grid measures 150 x150 mm. This perfectly finished drain comes with a Butyl adhesive sealing strip.

Type: Walk-in shower and waterproof seal mat
, Adapted for person with reduced mobility, Wet floor waste
Outlet: Horizontal
Finish: Chrome
Material: Plastic

Notice>Bondes à carreler.pdf

Download (2.07M)

Product Details

Type: Walk-in shower and waterproof seal mat
, Adapted for person with reduced mobility, Wet floor waste
Outlet: Horizontal
Finish: Chrome
Material: Plastic
