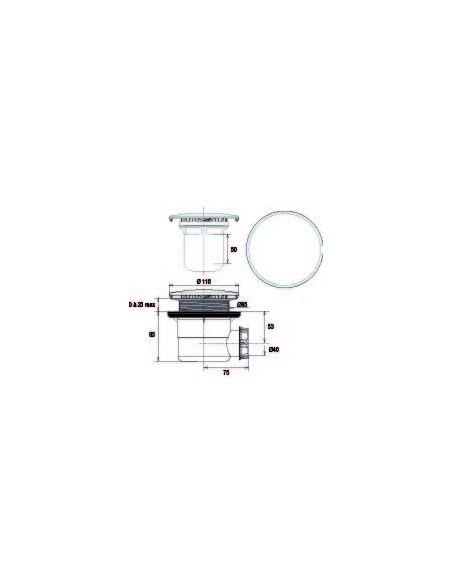

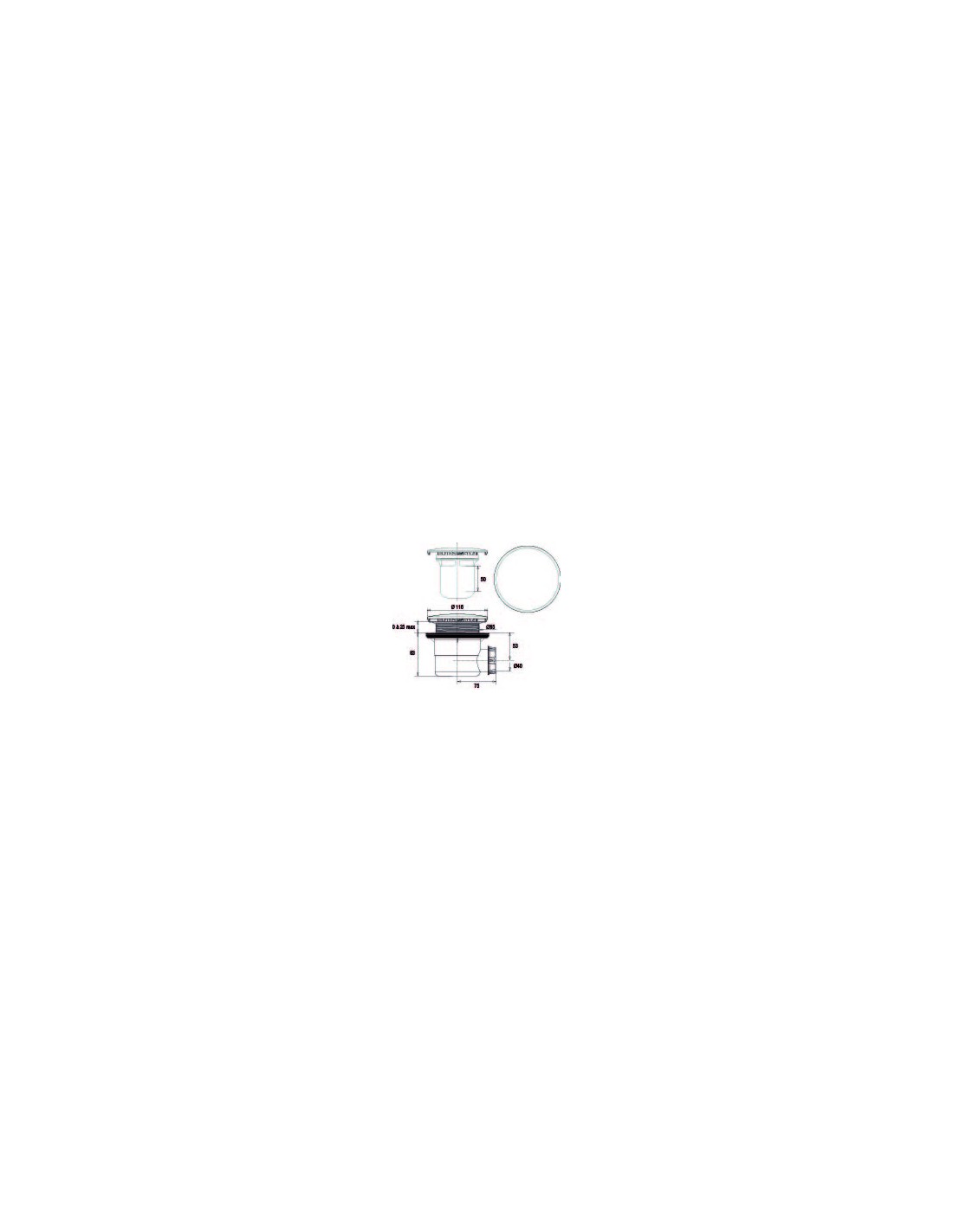

Drawing 571500 001 00 waste for shower tray D. 90 mm made of recycled plastic with white cover
Shower waste for Ø90 mm tray made of recycled plastic with white cover
Drawing 571500 001 00 waste for shower tray D. 90 mm made of recycled plastic with white cover
Shower waste for Ø90 mm tray made of recycled plastic with white cover
Drawing 571500 001 00 waste for shower tray D. 90 mm made of recycled plastic with white cover Shower waste for Ø90 mm tray made of recycled plastic with white cover
Shower waste for Ø90 mm tray made of recycled plastic with white cover

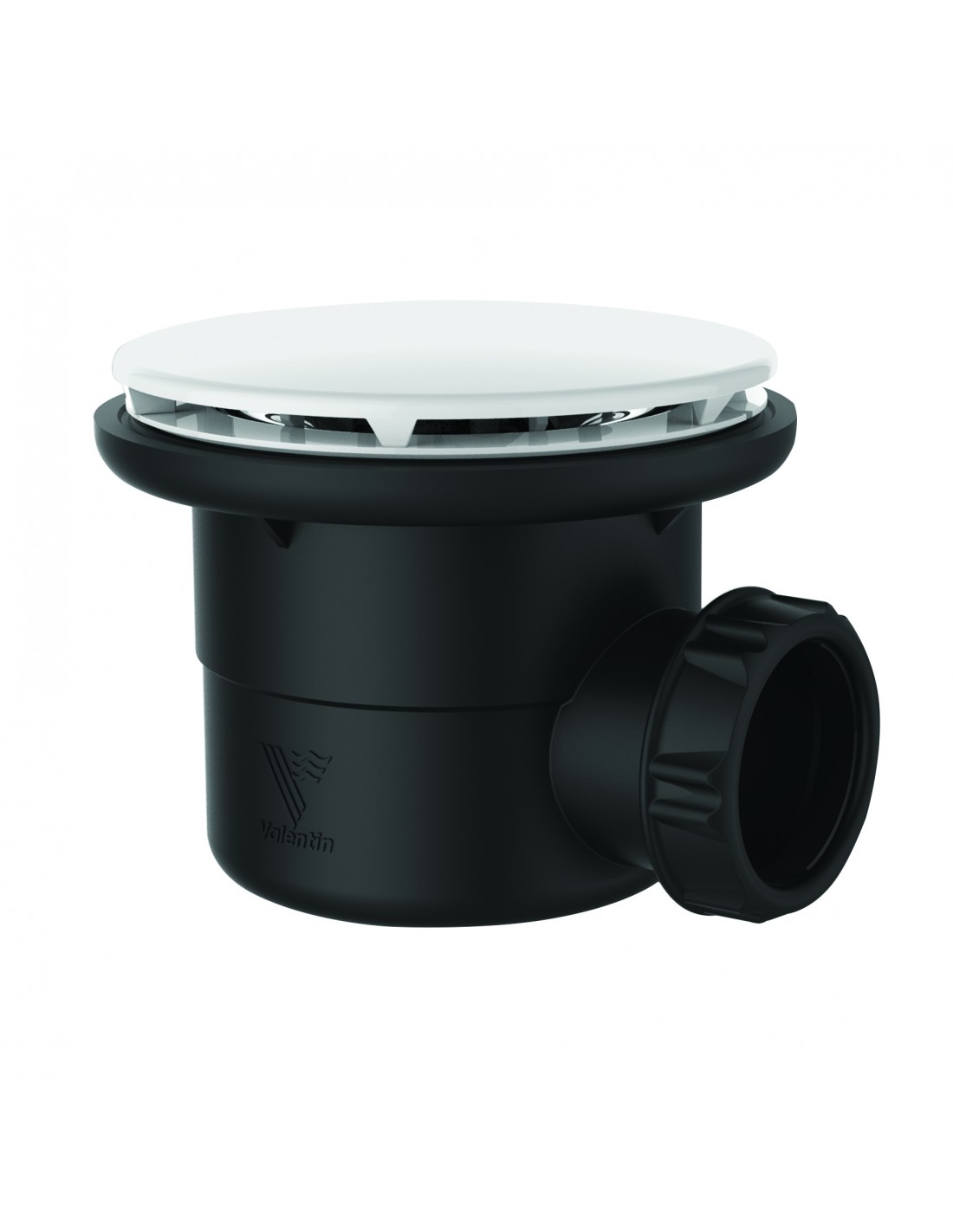

Waste for shower tray D.90 mm, cover D.116 mm, horizontal outlet D.40 mm, NF, recycled plastic

VALENTIN
571500 001 00

Shower waste for draining a 90 mm diameter drilled tray

Body contains 70% recycled plastic, white ABS cover D.116 mm

Tightening adjustable up to 25 mm, horizontal outlet to screw and stick, flow rate 27 l/min

50 mm water seal, easy to install and clean, NF certified

Advantages
  • Cleaning without tools nor chemicals. Access to water pipe.
  • Easy and quick installation
  • NF certified
  • Goodprint
    GOODPRINT Ecology, Sustainability and Performance
  • Solar Impulse Foundation
    Certified clean and sustainable solution by Solar Impulse Foundation

This shower drain for tray with 90 mm hole is equipped with a white cover with a 116 mm diameter. Tightening is possible up to 25 mm on the shower tray. The horizontal outlet is to be screwed and glued to the piping. The whole is perfectly waterproof. The 50 mm water seal creates a shield against bad smells and preserves the good odor in the bathroom.

The black plastic body is composed of 70% recycled plastic.

The flow rate is 27 l / min. The assembly is facilitated by the Autofix seal, and access is easy by the top to clean without tools. The drain is NF certified.

Type
Waste with mushroom cover
, Novelties
Outlet
Horizontal
Finish
White
Material
Plastic
Diameter
90 mm

Product Details

Type
Waste with mushroom cover
, Novelties
Outlet
Horizontal
Finish
White
Material
Plastic
Diameter
90 mm
